Lab 03 - Manage Azure resources by using Azure Resource Manager Templates

Lab introduction

In this lab, you learn how to automate resource deployments. You learn about Azure Resource Manager templates and Bicep templates. You learn about the different ways of deploying the templates.

This lab requires an Azure subscription. Your subscription type may affect the availability of features in this lab. You may change the region, but the steps are written using East US.

Estimated timing: 35 minutes

Interactive lab simulations

There are interactive lab simulations that you might find useful for this topic. The simulation lets you to click through a similar scenario at your own pace. There are differences between the interactive simulation and this lab, but many of the core concepts are the same. An Azure subscription is not required.

• Manage Azure resources by using Azure Resource Manager templates. Review, create, and deploy a managed disks with a template.

• Create a virtual machine with a template. Deploy a virtual machine with a QuickStart template.

Lab scenario

Your team wants to look at ways to automate and simplify resource deployments. Your organization is looking for ways to reduce administrative overhead, reduce human error and increase consistency.

Architecture diagram

Job skills

• Task 1: Create an Azure Resource Manager template.
• Task 2: Edit an Azure Resource Manager template and redeploy the template.
• Task 3: Configure the Cloud Shell and deploy a template with Azure PowerShell.
• Task 4: Deploy a template with the CLI.
• Task 5: Deploy a resource by using Azure Bicep.

Task 1: Create an Azure Resource Manager template

In this task, we will create a managed disk in the Azure portal. Managed disks are storage designed to be used with virtual machines. Once the disk is deployed you will export a template that you can use in other deployments.

1. Sign in to the Azure portal - https://portal.azure.com.

2. Search for and select Disks.

3. On the Disks page, select Create.

4. On the Create a managed disk page, configure the disk and then select Ok.

   Setting	Value
   Subscription	your subscription
   Resource Group	az104-rg3 (If necessary, select Create new.)
   Disk name	az104-disk1
   Region	East US
   Availability zone	No infrastructure redundancy required
   Source type	None
   Performance	Standard HDD (change size)
   Size	32 Gib

   Note: We are creating a simple managed disk so you can practice with templates. Azure managed disks are block-level storage volumes that are managed by Azure.

5. Click Review + Create then select Create.

6. Monitor the notifications (upper right) and after the deployment select Go to resource.

7. In the Automation blade, select Export template.

8. Take a minute to review the Template and Parameters files.

9. Click Download and save the templates to the local drive. This creates a compressed zipped file.

10. Use File Explorer to extract the content of the downloaded file into the Downloads folder on your computer. Notice there are two JSON files (template and parameters).

    Did you know? You can export an entire resource group or just specific resources within that resource group.

Task 2: Edit an Azure Resource Manager template and then redeploy the template

In this task, you use the downloaded template to deploy a new managed disk. This task outlines how to quicky and easily repeat deployments.

1. In the Azure portal, search for and select Deploy a custom template.

2. On the Custom deployment blade, notice there is the ability to use a Quickstart template. There are many built-in templates as shown in the drop-down menu.

3. Instead of using a Quickstart, select Build your own template in the editor.

4. On the Edit template blade, click Load file and upload the template.json file you downloaded to the local disk.

5. Within the editor pane, make these changes.

   • Change disks_az104_disk1_name to disks_az104_disk2_name (two places to change)
   • Change az104-disk1 to az104-disk2 (one place to change)

6. Notice this is a Standard disk. The location is eastus. The disk size is 32GB.

7. Save your changes.

8. Don’t forget the parameters file. Select Edit parameters, click Load file and upload the parameters.json.

9. Make this change so it matches the template file.

   Change disks_az104_disk1_name to disks_az104_disk2_name (one place to change)

10. Save your changes.

11. Complete the custom deployment settings:

    Setting	Value
    Subscription	your subscription
    Resource Group	az104-rg3
    Region	(US) East US)
    Disk_name	az104-disk2

12. Select Review + Create and then select Create.

13. Select Go to resource. Verify az104-disk2 was created.

14. On the Overview blade, select the resource group, az104-rg3. You should now have two disks.

15. In the Settings section, click Deployments.

    Note: All deployments details are documented in the resource group. It is a good practice to review the first few template-based deployments to ensure success prior to using the templates for large-scale operations.

16. Select a deployment and review the content of the Input and Template blades.

Task 3: Configure the Cloud Shell and deploy a template with Azure PowerShell

In this task, you work with the Azure Cloud Shell and Azure PowerShell. Azure Cloud Shell is an interactive, authenticated, browser-accessible terminal for managing Azure resources. It provides the flexibility of choosing the shell experience that best suits the way you work, either Bash or PowerShell. In this task, you use PowerShell to deploy a template.

1. Select the Cloud Shell icon in the top right of the Azure Portal. Alternately, you can navigate directly to https://shell.azure.com.



2. When prompted to select either Bash or PowerShell, select PowerShell.

   Did you know? If you mostly work with Linux systems, Bash (CLI) feels more familiar. If you mostly work with Windows systems, Azure PowerShell feels more familiar.

3. On the Getting started screen select No storage account required, in the subscription dialog box select your subscription

4. When completed select Apply. It will take a couple of minutes to provision the storage.

5. Use the Upload/Download files icon to upload the template and parameters file from the downloads directory. You will need to upload each file separately.

6. Verify your files are available in the Cloud Shell storage.

    dir


   Note: If you need to, you can use cls to clear the command window. You can use the arrow keys to move the command history.

7. Select the Editor (curly brackets) icon and navigate to the parameters JSON file.

8. Make a change. Change the disk name Value from null to ‘disk3’. (Ensure you place the quotation marks around disk3) Use Ctrl +S to save your changes.

   Note: You can target your template deployment to a resource group, subscription, management group, or tenant. Depending on the scope of the deployment, you use different commands.

9. To deploy to a resource group, use New-AzResourceGroupDeployment.

    New-AzResourceGroupDeployment -ResourceGroupName az104-rg3 -TemplateFile ./template.json -TemplateParameterFile ./parameters.json


10. Ensure the command completes and the ProvisioningState is Succeeded.

11. Confirm the disk was created.

    Get-AzDisk -ResourceGroup az104-rg3


Task 4: Deploy a template with the CLI

1. Continue in the Cloud Shell select Bash. Confirm your choice.

2. Verify your files are available in the Cloud Shell storage. If you completed the previous task your template files should be available.

    ls


3. Select the Editor (curly brackets) icon and navigate to the parameters JSON file.

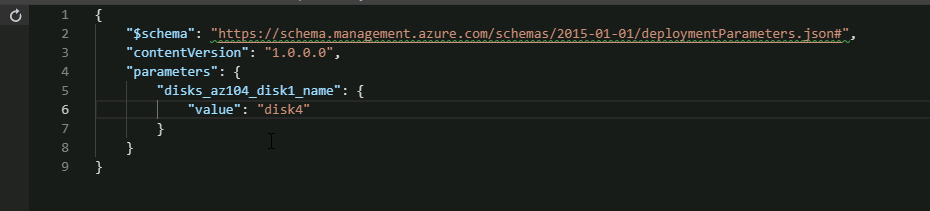

4. Make a change. For example, change the disk name to az104-disk4. Use Ctrl +S to save your changes.

   Note: You can target your template deployment to a resource group, subscription, management group, or tenant. Depending on the scope of the deployment, you use different commands.

5. To deploy to a resource group, use az deployment group create.

    az deployment group create --resource-group az104-rg3 --template-file template.json --parameters parameters.json


6. Ensure the command completes and the ProvisioningState is Succeeded.

7. Confirm the disk was created.

     az disk list --output table


Task 5: Deploy a resource by using Azure Bicep

In this task, you will use a Bicep file to deploy a managed disk. Bicep is a declarative automation tool that is built on ARM templates.

1. Continue working in the Cloud Shell in a Bash session.

   Note: If you need to, you can use clear to clear the command window.

2. Locate and download the \Allfiles\Labs\03\azuredeploydisk.bicep file.

3. Upload the bicep file to the Cloud Shell.

4. Select the Editor (curly brackets) icon and navigate to the file.

5. Take a minute to read through the bicep template file. Notice how the disk resource is defined.

6. Make the following changes:

   • On Line 2 Change the managedDiskName value to az104-Disk5.
   • On Line 7 Change the diskSizeinGiB value to 32.
   • On Line 26 Change the sku name value to StandardSSD_LRS.

7. Use Ctrl +S to save your changes.

8. Now, deploy the template.

    az deployment group create --resource-group az104-rg3 --template-file azuredeploydisk.bicep


9. Confirm the disk was created.

    az disk list --output table


   Note: You have successfully deployed five managed disks, each in a different way. Nice job!

Cleanup your resources

If you are working with your own subscription take a minute to delete the lab resources. This will ensure resources are freed up and cost is minimized. The easiest way to delete the lab resources is to delete the lab resource group.

• In the Azure portal, select the resource group, select Delete the resource group, Enter resource group name, and then click Delete.
• Using Azure PowerShell, Remove-AzResourceGroup -Name resourceGroupName.
• Using the CLI, az group delete --name resourceGroupName.

Key takeaways

Congratulations on completing the lab. Here are the main takeaways for this lab.

• Azure Resource Manager templates let you deploy, manage, and monitor all the resources for your solution as a group, rather than handling these resources individually.
• An Azure Resource Manager template is a JavaScript Object Notation (JSON) file that lets you manage your infrastructure declaratively rather than with scripts.
• Rather than passing parameters as inline values in your template, you can use a separate JSON file that contains the parameter values.
• Azure Resource Manager templates can be deployed in a variety of ways including the Azure portal, Azure PowerShell, and CLI.
• Bicep is an alternative to Azure Resource Manager templates. Bicep uses a declarative syntax to deploy Azure resources.

Bicep provides concise syntax, reliable type safety, and support for code reuse. Bicep offers a first-class authoring experience for your infrastructure-as-code solutions in Azure.
