Lab 05 - Implement Intersite Connectivity

Lab introduction

In this lab you explore communication between virtual networks. You implement virtual network peering and test connections. You will also create a custom route.

This lab requires an Azure subscription. Your subscription type may affect the availability of features in this lab. You may change the region, but the steps are written using East US.

Estimated time: 45 minutes

Lab scenario

Your organization segments core IT apps and services (such as DNS and security services) from other parts of the business, including your manufacturing department. However, in some scenarios, apps and services in the core area need to communicate with apps and services in the manufacturing area. In this lab, you configure connectivity between the segmented areas. This is a common scenario for separating production from development or separating one subsidiary from another.

Interactive lab simulations

There are several interactive lab simulations that you might find useful for this topic. The simulation lets you to click through a similar scenario at your own pace. There are differences between the interactive simulation and this lab, but many of the core concepts are the same. An Azure subscription is not required.

• Connect two Azure virtual networks using global virtual network peering. Test the connection between two virtual machines in different virtual networks. Create a virtual network peering and retest.

• Configure monitoring for virtual networks. Understand how to use Azure Network Watcher Connection Monitor, flow logs, NSG diagnostics, and packet capture to monitor connectivity across your Azure IaaS network resources.

• Implement intersite connectivity. Run a template to create a virtual network infrastructure with several virtual machines. Configure virtual network peerings and test the connections.

Architecture diagram

Job skills

• Task 1: Create a virtual machine in a virtual network.
• Task 2: Create a virtual machine in a different virtual network.
• Task 3: Use Network Watcher to test the connection between virtual machines.
• Task 4: Configure virtual network peerings between different virtual networks.
• Task 5: Use Azure PowerShell to test the connection between virtual machines.
• Task 6: Create a custom route.

Task 1: Create a core services virtual machine and virtual network

In this task, you create a core services virtual network with a virtual machine.

1. Sign in to the Azure portal - https://portal.azure.com.

2. Search for and select Virtual Machines.

3. From the virtual machines page, select Create then select Azure Virtual Machine.

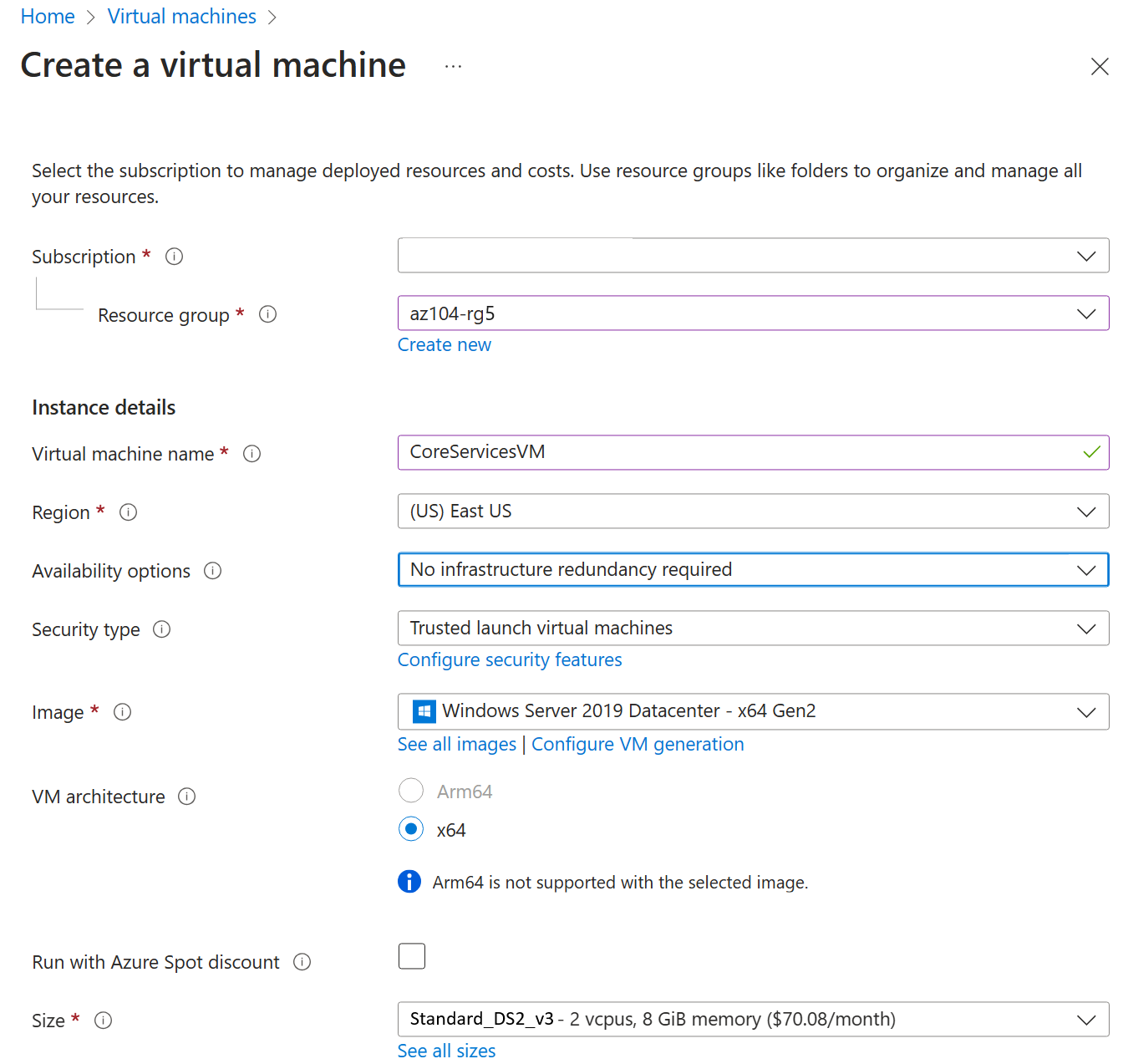

4. On the Basics tab, use the following information to complete the form, and then select Next: Disks >. For any setting not specified, leave the default value.

   Setting	Value
   Subscription	your subscription
   Resource group	az104-rg5 (If necessary, Create new. )
   Virtual machine name	CoreServicesVM
   Region	(US) East US
   Availability options	No infrastructure redundancy required
   Security type	Trusted launch virtual machines
   Image	Windows Server 2019 Datacenter: x64 Gen2 (notice your other choices)
   Size	Standard_DS2_v3
   Username	localadmin
   Password	Provide a complex password



5. On the Disks tab take the defaults and then select Next: Networking >.

6. On the Networking tab, for Virtual network, select Create new.

7. Use the following information to configure the virtual network, and then select Ok. If necessary, remove or replace the existing information.

   Setting	Value
   Name	CoreServicesVnet (Create new)
   Address range	10.0.0.0/16
   Subnet Name	Core
   Subnet address range	10.0.0.0/24

8. In the Public IP dropdown list select None

9. Select the Monitoring tab. For Boot Diagnostics, select Disable.

10. Select Review + Create, and then select Create.

11. You do not need to wait for the resources to be created. Continue on to the next task.

    Note: Did you notice in this task you created the virtual network as you created the virtual machine? You could also create the virtual network infrastructure then add the virtual machines.

Task 2: Create a virtual machine in a different virtual network

In this task, you create a manufacturing services virtual network with a virtual machine.

1. From the Azure portal, search for and navigate to Virtual Machines.

2. From the virtual machines page, select Create then select Azure Virtual Machine.

3. On the Basics tab, use the following information to complete the form, and then select Next: Disks >. For any setting not specified, leave the default value.

   Setting	Value
   Subscription	your subscription
   Resource group	az104-rg5
   Virtual machine name	ManufacturingVM
   Region	(US) East US
   Availability options	No infrastructure redundancy required
   Security type	Trusted launch virtual machines
   Image	Windows Server 2019 Datacenter: x64 Gen2
   Size	Standard_DS2_v3
   Username	localadmin
   Password	Provide a complex password

4. On the Disks tab take the defaults and then select Next: Networking >.

5. On the Networking tab, for Virtual network, select Create new.

6. Use the following information to configure the virtual network, and then select Ok. If necessary, remove or replace the existing address range.

   Setting	Value
   Name	ManufacturingVNet
   Address range	172.16.0.0/16
   Subnet Name	Manufacturing
   Subnet address range	172.16.0.0/24

7. In the Public IP dropdown list select None

8. Select the Monitoring tab. For Boot Diagnostics, select Disable.

9. Select Review + Create, and then select Create.

   Note: Wait for the VM to deploy before moving on to the next Task.

Task 3: Use Network Watcher to test the connection between virtual machines

In this task, you verify that resources in peered virtual networks can communicate with each other. Network Watcher will be used to test the connection. Before continuing, ensure both virtual machines have been deployed and are running.

1. From the Azure portal, search for and select Network Watcher.

2. From Network Watcher, in the Network diagnostic tools menu, select Connection troubleshoot.

3. Use the following information to complete the fields on the Connection troubleshoot page.

   Field	Value
   Source type	Virtual machine
   Virtual machine	CoreServicesVM
   Destination type	Select a Virtual machine
   Virtual machine	ManufacturingVM
   Preferred IP Version	Both
   Protocol	TCP
   Destination port	3389
   Source port	Blank
   Diagnostic tests	Defaults



4. Select Run diagnostic tests.

   Note: It may take a few minutes for the results to be returned. The screen selections will be greyed out while the results are being collected. Notice the Connectivity test shows Unknown or UnReachable. This makes sense because the virtual machines are in different virtual networks.

Task 4: Configure virtual network peerings between virtual networks

In this task, you create a virtual network peering to enable communications between resources in the virtual networks.

1. In the Azure portal, search for and select Virtual Networks

2. Select the CoreServicesVnet virtual network.

3. In CoreServicesVnet, under Settings, select Peerings.

4. On CoreServicesVnet

   Peerings, select + Add.

5. Use the information in the following table to create the peering.

Parameter	Value
Remote virtual network summary
Peering link name	ManufacturingVnet-to-CoreServicesVnet
Virtual network deployment model	Resource manager
I know my resource ID	Not selected
Subscription	your subscription
Virtual network	ManufacturingVnet
Remote virtual network peering settings
Allow ‘ManufacturingVnet’ to access ‘CoreServicesVNet’	selected (default)
Allow ‘ManufacturingVnet’ to receive forwarded traffic from ‘CoreServicesVNet’	selected
Allow gateway or route server in ‘ManufacturingVnet’ to forward traffic to ‘CoreServicesVNet’	Not selected (default)
Enable ‘ManufacturingVnet’ to use ‘CoreServicesVNet’ remote gateway or route server	Not selected (default)
Local virtual network summary
Peering link name	CoreServicesVnet-to-ManufacturingVnet
Local virtual network peering setting
Allow ‘CoreServicesVnet’ to access ‘ManufacturingVnet’	selected (default)
Allow ‘CoreServicesVnet’ to receive forwarded traffic from ‘ManufacturingVnet’	selected
Allow gateway or remote server in ‘CoreServicesVNet’ to forward traffic to ‘ManufacturingVnet’	Not selected (default)
Enable ‘CoreServicesVnet’ to use ‘ManufacturingVnet’ remote gateway or route server	Not selected (default)

1. Review your settings and select Add.



2. In CoreServicesVnet

   Peerings, verify that the CoreServicesVnet-to-ManufacturingVnet peering is listed. Refresh the page to ensure the Peering status is Connected.

3. Switch to the ManufacturingVnet and verify the ManufacturingVnet-to-CoreServicesVnet peering is listed. Ensure the Peering status is Connected. You may need to Refresh the page.

Task 5: Use Azure PowerShell to test the connection between virtual machines

In this task, you retest the connection between the virtual machines in different virtual networks.

Verify the private IP address of the CoreServicesVM

1. From the Azure portal, search for and select the CoreServicesVM virtual machine.

2. On the Overview blade, in the Networking section, record the Private IP address of the machine. You need this information to test the connection.

Test the connection to the CoreServicesVM from the ManufacturingVM.

Did you know? There are many ways to check connections. In this task, you use Run command. You could also continue to use Network Watcher. Or you could use a Remote Desktop Connection to the access the virtual machine. Once connected, use Test-NetConnection.

1. Switch to the ManufacturingVM virtual machine.

2. In the Operations blade, select the Run command blade.

3. Select RunPowerShellScript and run the Test-NetConnection command. Be sure to use the private IP address of the CoreServicesVM.

    Test-NetConnection <CoreServicesVM private IP address> -port 3389


4. It may take a couple of minutes for the script to time out. The top of the page shows an informational message Script execution in progress.

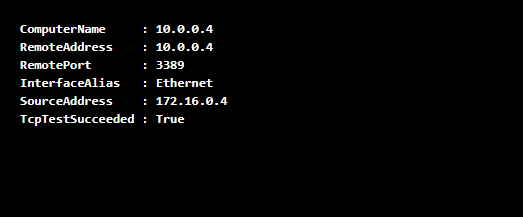

5. The test connection should succeed because peering has been configured. Your computer name and remote address in this graphic may be different.



Task 6: Create a custom route

In this task, you want to control network traffic between the perimeter subnet and the internal core services subnet. A virtual network appliance will be installed in the core services subnet and all traffic should be routed there.

1. Search for select the CoreServicesVnet.

2. Select Subnets and then + Subnet. Be sure to Save your changes.

   Setting	Value
   Name	perimeter
   Subnet address range	10.0.1.0/24

3. In the Azure portal, search for and select Route tables, and then select + Create.

   Setting	Value
   Subscription	your subscription
   Resource group	az104-rg5
   Region	East US
   Name	rt-CoreServices
   Propagate gateway routes	No

4. Select Review + create and then Create

5. After the route table deploys, select Go to resource.

6. Select Routes and then + Add. Create a route from the future NVA to the CoreServices virtual network.

   Setting	Value
   Route name	PerimetertoCore
   Destination type	IP Addresses
   Destination IP addresses	10.0.0.0/16 (core services virtual network)
   Next hop type	Virtual appliance (notice your other choices)
   Next hop address	10.0.1.7

7. Select + Add when the route is completed. The last thing to do is associate the route with the subnet.

8. Select Subnets and then + Associate. To complete the configuration Click OK.

   Setting	Value
   Virtual network	ManufacturingVNet
   Subnet	Manufacturing

Note: You have created a user defined route to direct traffic from the DMZ to the new NVA.

Cleanup your resources

If you are working with your own subscription take a minute to delete the lab resources. This will ensure resources are freed up and cost is minimized. The easiest way to delete the lab resources is to delete the lab resource group.

• In the Azure portal, select the resource group, select Delete the resource group, Enter resource group name, and then click Delete.
• Using Azure PowerShell, Remove-AzResourceGroup -Name resourceGroupName.
• Using the CLI, az group delete --name resourceGroupName.

Key takeaways

Congratulations on completing the lab. Here are the main takeaways for this lab.

• By default, resources in different virtual networks cannot communicate.
• Virtual network peering enables you to seamlessly connect two or more virtual networks in Azure.
• Peered virtual networks appear as one for connectivity purposes.
• The traffic between virtual machines in peered virtual networks uses the Microsoft backbone infrastructure.
• System defined routes are automatically created for each subnet in a virtual network. User-defined routes override or add to the default system routes.
• Azure Network Watcher provides a suite of tools to monitor, diagnose, and view metrics and logs for Azure IaaS resources.
